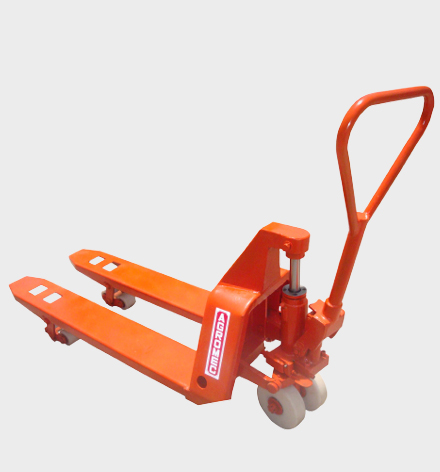

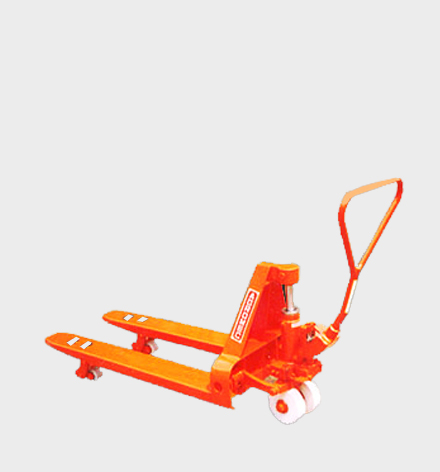

Agromec manufactures Hydraulic Handlift Pallet trucks in standard capacities of 1.1, 2, 2.5 & 3.2 Tons and standard fork length of 900 mm, 1050 mm and 1220 mm. The Minimum pallet gap varies from 65 to 100 mm. For special applications, pallet trucks can be tailor-made to suit customer's requirement of capacities up to 10 Tons, fork lengths up to 1650 mm. And pallet gap up to 250 mm and even more. The Ram and plunger used in hydraulic unit are hard chrome plated and mirror finished. The cylinders are honed to high degree of finish. Lifting is done by swift and easy strokes of the steering handle and lowering by pressing a foot pedal. Cushioned lowering under Hydraulic pressure enables the trucks to handle all breakable parts & products. Each wheel is provided with two antifriction reputed make Bearings. Ball thrust and oil cushioned steering combined with wide dual steering wheels provides excellent, maneuverability in narrow ailes and restricted areas and easy steer with heavy loads. An ideal machine for internal handling of raw Materials, components and finished products from store to shop floor, from machine to machine, from one bay to another, ultimately to loading/unloading platform and vice-versa, completely a one man show on smooth level pucca floors. Hydraulic unit has few working parts, for easy maintenance and long life. Parts are interchangeable and available off the shelf.

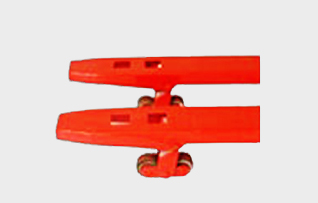

Option for double rear wheel (Articulating type) or single rear wheel.
MODEL | AGST 110 | AGST 200 | AGST 250 | AGST 320 | AGST 500 | |
---|---|---|---|---|---|---|
Capacity | 1100 Kgs. | 2000 Kgs. | 2500 Kgs. | 3200 Kgs. | 5000 kgs. | |
Lift: | 122 mm. | 122 mm. | 122 mm. | 122 mm. | 122 mm. | |
Fork Length | A | 1220 mm. | 1220 mm. | 1220 mm. | 1220 mm. | 1220 mm. |
Overall Width | B | 560 mm. | 560 mm. | 560 mm. | 560 mm. | 560 mm. |
Min. Pallet Gap | C | 80 mm. | 80 mm. | 87 mm. | 100 mm. | 130 mm. |
Total Length | D | 1560 mm. | 1560 mm. | 1575 mm. | 1600 mm. | 1625 mm. |
Fork Width | E | 152 mm. | 152 mm. | 187 mm. | 187 mm. | 187 mm. |
Front Wheel | F | 175 x 50 mm. | 175 x 50 mm. | 200 x 50 mm. | 250 x 50 mm. | 300 x 50 mm. |
Rear Wheel Dia | G | 78 mm.* | 78 mm.* | 85 mm.* | 95 mm. | 125 mm. |
Turning Radius | k | 1325 mm. | 1325 mm. | 11340 mm. | 1350 mm. | 1360 mm. |
Self Weight | k | 130 mm. | 140 mm. | 160 mm. | 175 mm. | 320 mm. |
l | H |
The Forks are bended in 'U' shape channel from M.S. Plate. |
